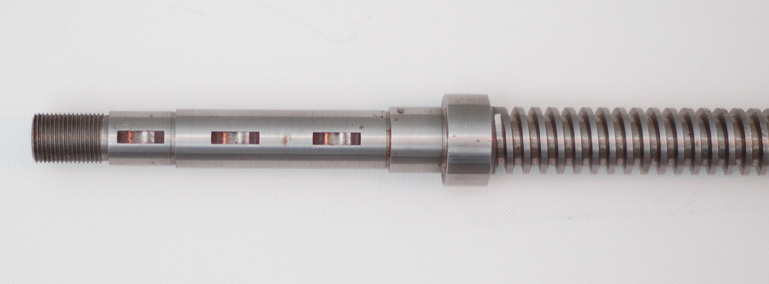

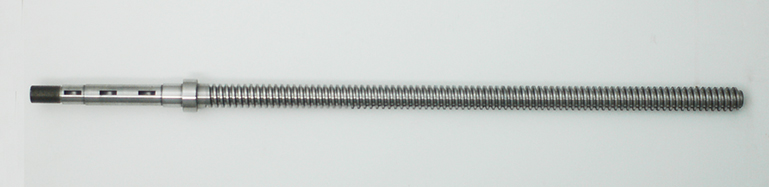

Warner & Swasey Cross Screw
Total Length: 31″
1-A, 2-A, 3-A with 3/16″ Woodruff Keys
OD: 1 inch
Threading Pitch: 1 inch x 4 pitch

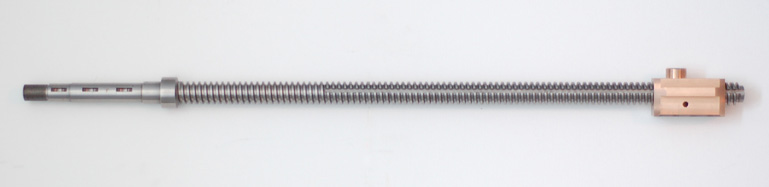

Nut for Warner & Swasey Cross Screw

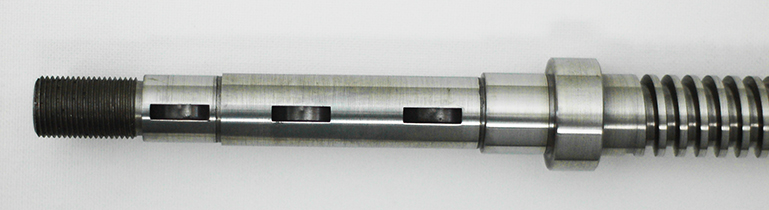

WSL16
Length: 28 and 5/8 inches
1″ 4 pitch Rt hand
3/4 – 16 thread
Diameter: 0.8125
Diameter: 0.875
No. 9 Woodruff Key

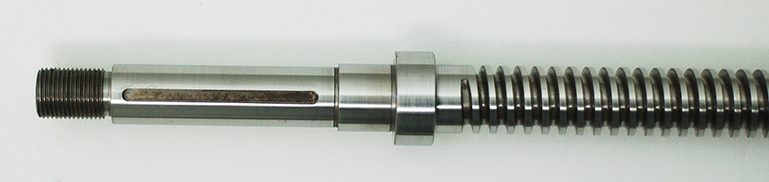

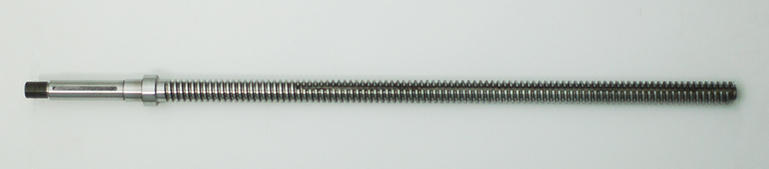

WSL14
Length: 29 and 11/16 inches
1″ 4 pitch Rt hand
3/4 – 16 thread
Diameter: 0.875
3/16″ Square Key x 2 and 25/32 inches

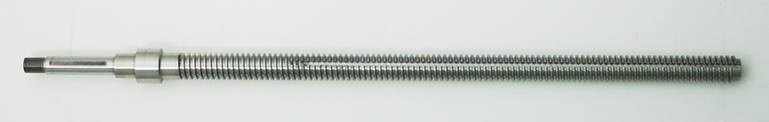

WSL8
Length: 32 and 11/16 inches
1 and 1/4″ 4 pitch Rt hand
3/4 – 16 thread
Diameter: 0.875
3/16″ Square Key x 2 and 25/32 inches

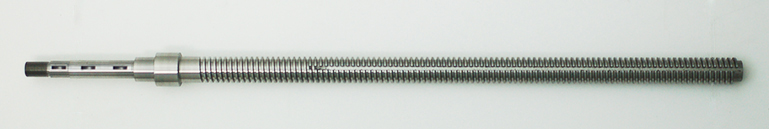

WSL7
Length: 33 and 5/8 inches
1 and 1/4″ 4 pitch Rt hand
3/4 – 16 thread
Diameter: 0.8125
Diameter: 0.875
No. 9 Woodruff Key
WSL6
Length: 34 and 5/8 inches
1 and 1/4″ 4 pitch Rt hand
7/8 – 14 thread
Diameter: 0.9375
1/4″ Square Key x 3 and 1/32 inches

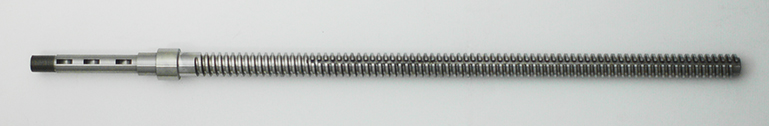

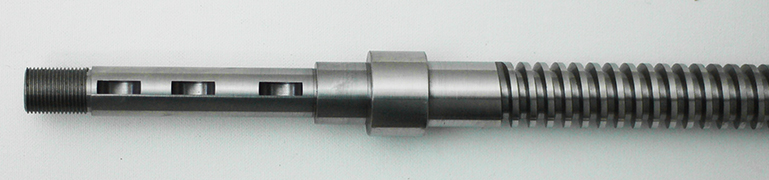

WSL5
Length: 35 and 1/2 inches
1 and 1/4″ 3 pitch Rt hand
7/8 – 14 thread
Diameter: 0.9375
No. A Woodruff Key

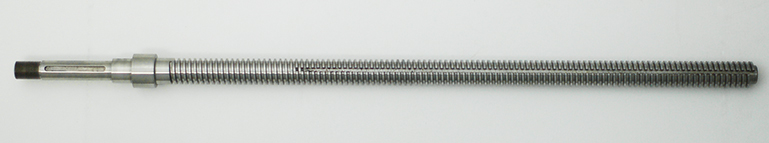

WSL3
Length: 38 and 5/8 inches
1 and 1/4″ 4 pitch Rt hand
7/8 – 14 thread
Diameter: 0.9375
1/4″ Square Key x 3 and 1/32 inches
WSL2
Length: 39 and 1/2 inches
1 and 1/4″ 3 pitch Rt hand
7/8 – 14 thread
Diameter: 0.9375
No. A Woodruff Key
